技术参数 Technical Parameter | |
型号 Model | RF-101 |
电压 Voltage | AC-220V 50HZ |
功率 Power | 1000W |
热风温度 Heat Control | 0-300°C |
速度 Speed | 0.1-9m/min |
压缩空气 Pressrue | 0.35-0.5M |
传动方式 Feed type | 皮带传动 By double belt |
皮带宽度 Belt width | 25mm |
机器尺寸 Dimension | 1200*550*1300mm |
净重 Net weight | 115kg |

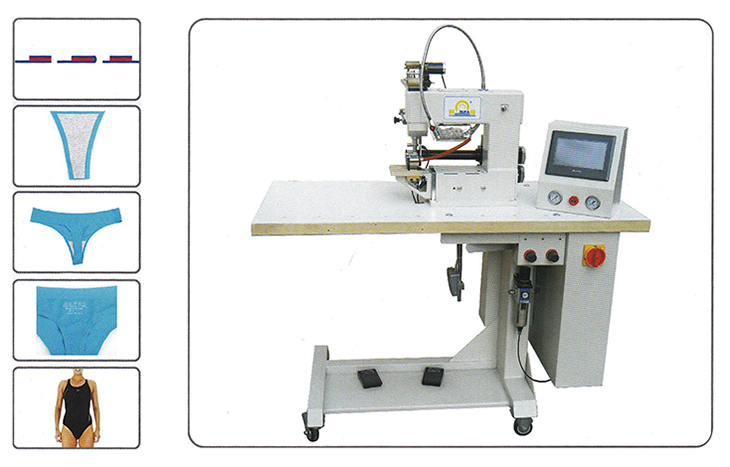

RF-101特点:
1广泛适用于无缝短裤,文胸,运动衫,泳衣,单车服等产品的包边
2.可编辑PLC控制,7寸触摸屏可视化操作
3.上下皮带可独立调节速度,存储10个缩率程序
4.上下皮带,吹风,导带槽均可独立调节温度,稳定稳定性+2度
FeaturesofRF-101
1.Widely used in seamless panty,seamless bra,sports T-shirt,swimming wear,bike wear etc to fold the fabric
2.Controled by editable PLC with 7 inch touch screen
3.Upper and lower belts adjust the speed individually and store 10 minification programs
4.Belt,blowing and guide slot all could adjust the temperature individually with stabilityupto +2 degree
