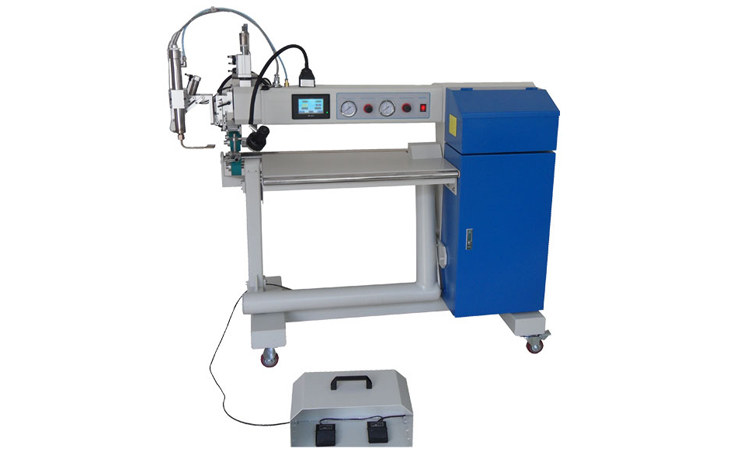

RF-A12T hot air welding machine with table

RF-A12T hot air welding machine with table


技术参数
Technical Parameter

型号 ModelRF-A12T
电压 VoltageAC-220V 50HZ
功率 Power3000w
热风温度 Heat control Up to 700°C for hot air
热块温度 Heat control Up to 450°C for hot wedge
速度 Speed1-18m/min
压缩空气 Pressrue0.35-0.5Mpa
压轮宽度 Roller width20/30/40/50mm
枪嘴宽度 Nozzle width 20/30/45mm
机器尺寸 Dimension1500*750*1600mm
可选功能 Option Function     热块功能 Hot Wedge
净重 Net weight260kg



RF-A12T特点:


1.超大操作空间,广泛应用于网络PVC面料的焊接,如篷房,充气艇,广告横幅等


2.具有热风和热块两种功能


3.采用PLC可编程,触摸式数字显示


4.温度自动控制,稳定性能高,温度上限报警设计,保护发热丝


5.自动补偿虚位,自动微退,减少压带空白


6.双脚踏控制,操作舒适,适宜长时间操作


7.可连续24小时工作


8.独特发热管结构,进风经过滤,绝无水分和油分


9.超强大的扭动力设计


Features of RF-A12T


1.Bigger operation space,widely used in coated PVC fabric welding,such as tent house,inflatable boat/water tank,banner etc


2.With both hot air and hot wedge function


3.Editable PLC control,touch screen display


4.Auto temperature control with warning device for the up limit temperature


5.Auto compensation and reverse


6.Double pedals control


7.It could work up to 24 hours


8.Blowing-in hot air is filtrated without any water and oil


9.Super strong torsional dynamic design
