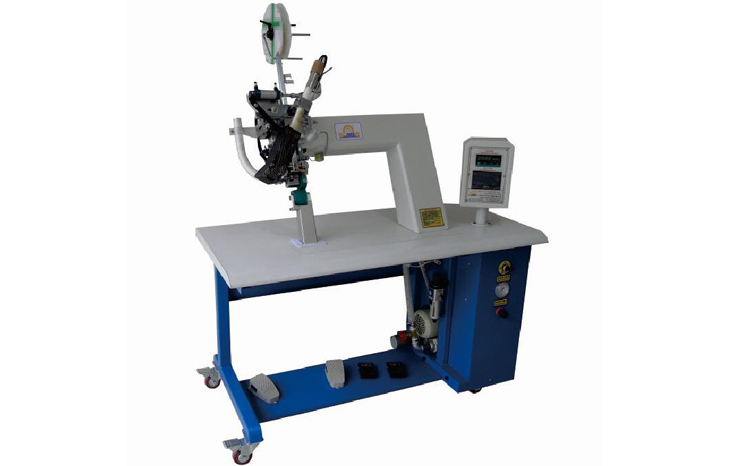

RF-A17

RF-A17

RF-A17热风机既可以直线贴胶又可以转弯贴胶,上下轮可差速,非常适合高档冲锋衣的贴胶封口


技术参数

Technical Parameter


型号 ModelRF-A17
电压 VoltageAC-220V 50HZ
功率 Power2000W
热风温度 Heat ControlUp to 700°C
速度 Speed1-24m/min
压缩空气 Pressrue0.35-0.5M
压轮宽度 Roller width25.4mm
上压轮行程 Upper roller lift 20-35mm
机器尺寸 Dimension1300*600*1600mm
净重 Net weight170kg



RF-A17特点:


1.适用于各种防水衣物,如防水夹克,雨衣,帐篷,车罩等


2.松下PLC控制


3.上下压轮链条同步传动,自动补偿虚位,自动微退,减少压带空白


4.本机可实现转弯封口和直线封口双功能


5.可连续24小时工作


6.独特发热曾结构,进风经过滤,绝无水分和油分


7.自动剪带、送待,自动带尾完成,减少材料损耗


8.下柱独特超薄设计,适宜各种大小件产品密封压带


Featuresof RF-A17


1.Suitable for kinds of waterproof garment and products,such as waterproof jacket,raincoat,tent,car cover etc


2.Panasonice PLC control


3.The up and low roller chain are synchronous,auto compensation and reverse


4.Suit for both curved seam sealing and straight seam sealing


5.It could work up to 24 hours


6.Blowing-in hot air is filtrated without any water and oil


7.Auto tape clipping ,feeding and finishing reduce function


8.Supper-thin lower column design,suitable for sealing various sizes products
